Home Products Wireless Module REX3TP258

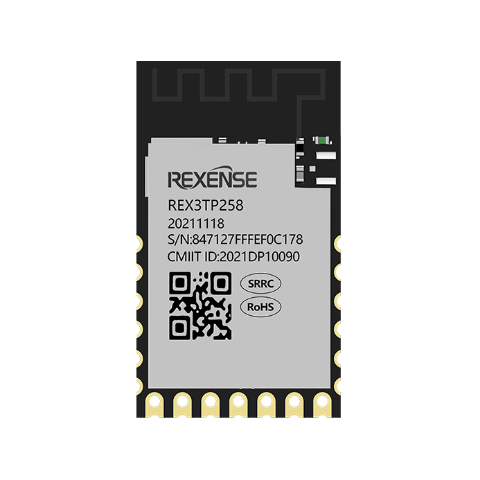

REX3TP258

Size: 25.4x14.8x2.4mm（With Shielding Cover）
Operating TEMP: -40°C to +85°C
Application: Switch, Panel

REX3TP258 is a compact，low power and highly sensitive Zigbee module that complies with the IEEE802.15.4 specification and Zigbee 3.0 protocol standards. The module has integrates 64KB RAM, 512KB Flash, 14-bit ADC,6-channel PWM and rich GPIO resources.

Consult immediately

Scheme Advantages Main Characteristics Encapsulation Information

Scheme Advantages

High performance

On-chip PA
Stable communication within a range of 4,000 meters in open space without interference¹
Excellent wall penetration ability
High reliability

Professional hardware design
Strict testing standards
Ensure the reliability of products in harsh environments
High compatibility

Rexense standard package
Switch platform pin to pin, higher compatibility

Main Characteristics

Output Power: up to 20dBm

High Receiving Sensitivity: up to -102.5dBm

Multiple antenna forms can be selected

Very Low Power Consumption

Sleep Mode: 2.5µA

Receiving Mode: 14.7mA

Transmitting mode: 133.8 mA@20dBm

Frequency Offset Range: < ±10ppm@25℃

Large Storage Resources: 512KB Flash, 64KB RAM
The 15 I/O interfaces can be configured as multiple functional interfaces according to user

GPIO

External Interrupt Source

14-bit Precision ADC Sampling Channel

UART with hardware flow control

SPI/I²C Interface

PWM Output

Hardware Watchdog

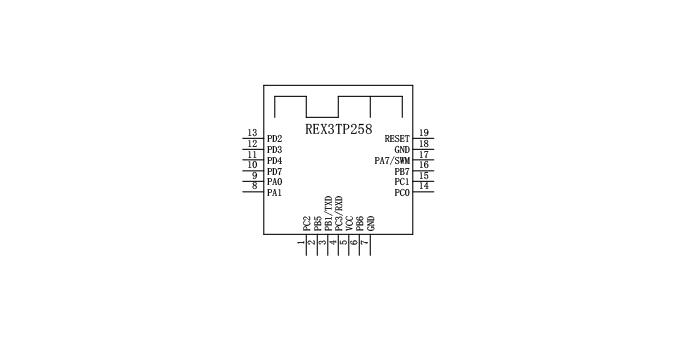

Encapsulation Information

Size: 25.4mm(L)x14.8mm(W)x2.4mm(H) (with Shielding Cover)
(Dimensional tolerance: length width ±0.25mm, height ±0.15mm)
